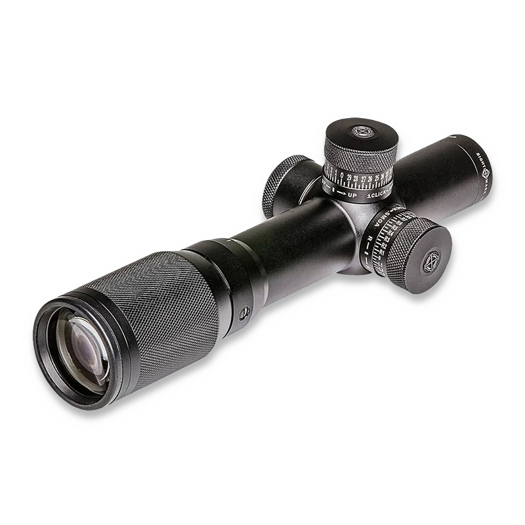

Sightmark Rapid AR 1-4x20 SHR-223 望远镜瞄准器

说明

The nitrogen-filled, IP67 waterproof, shock proof, fog proof Sightmark AR 1-4x20 SHR-223 Riflescope gets you on target with precision optical quality packed in an elite, compact body. Built specifically for .223-cal. modern sporting rifles with a rugged 6061-T6 30mm tube and scaled perfectly for lightweight, fast-action professional and competition shooting, the AR Riflescope boasts an SHR-223 finely etched reticle, complete with red-illumination and calibrated subtension lines for .223-cal. bullet drop compensation. 10 Reticle illumination brightness settings provide the intensity for daylight to no-light shooting. The generous 4.5” eye relief provides shooters with a robust field of view while an advanced, fully-multicoated, scratch resistant lens system, 1-4x magnification and an easy-to-focus power rotation eyepiece work together to give razor sharp, lightning quick target acquisition. Whether your rifle is all business, all competition or all fun, exposed pop-up locking turrets deliver precise ½” per click windage and elevation adjustments for superb tracking. The Sightmark AR 1-4x20 SHR-223 Riflescope is the perfect close- to mid-range second-focal-plane-optic to make your mark.

Reticle SHR-223
Reticle, Type Etched
Illuminated (yes/no) Black and red
Magnification 1-4
Reticle Brightness Setting 0-10
Diameter, Objective Lens 20
Diameter, Eyepiece 1.6/41
Diameter, Exit Pupil 11.8-5
Eye Relief 4.5/114.3
Field of view, m@100m 31-7.6
Field of view, ft@100yd 93-22.7
Diopter Adjustment +3 to -3
Diameter, Tube 30
Parallax Setting 100
Adjustment Value 1/2 MOA
Windage Range of Adjustment 100
Elevation Range of Adjustment 100
Windage & Elevation, Lock Yes
Maximum Recoil 800G's
Battery Type CR2032
Battery life, hours 35-350
Battery Voltage, V 3
Sunshade No
Nitrogen Filled Yes
Shockproof Yes
Fog Proof Yes
Focal Plane 2nd
IP Rating (waterproof) IP67-waterproof to 1m/3ft for 1 hour
Finish/Color Matte black
Body Material 6061-T6 Aluminum
Lens Coating Fully multi-coated
Operating Temp,?F/?C 0 to 122 / -17 to 50
Length (in/mm) 8.7/221
Width (in/mm) 2.9/73
Height (in/mm) 2.2/55
