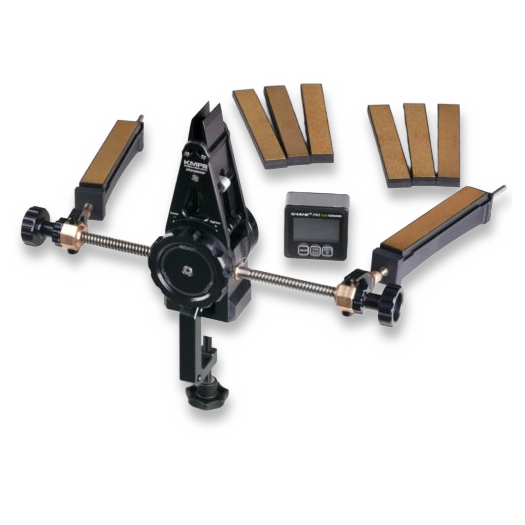

KMFS Rival MOA21 sharpening system

Description

All dural parts are made by milling from ERGAL ENAW 7075 T651 coated in hard black elox, semifloating cross in natural elox. Bronze bushing of lead trapezoidal screw and leading bars segments are made from bronze CuSn8, cam of semifloating cross and inner / outer part of leading nuts of fine independent angle adjusting are made from bronze CuSn7Zn4Pb7. Could clamp automaticaly knife blades up to 7 mm thickness.

The pack includes:

• Knife clamp MOA21 vith patented mechanism
• Sharpening segment fastener (whetstone holders) x 2
• Table fastening clamp x 1
• Extra pair of leading rods for longer knives
• Diamond whetstone 240 grit with DLC finish x 4
• Diamond whetstone 600 grit with DLC finish x 2
• Diamond whetstone 1000 grit with DLC finish x 2

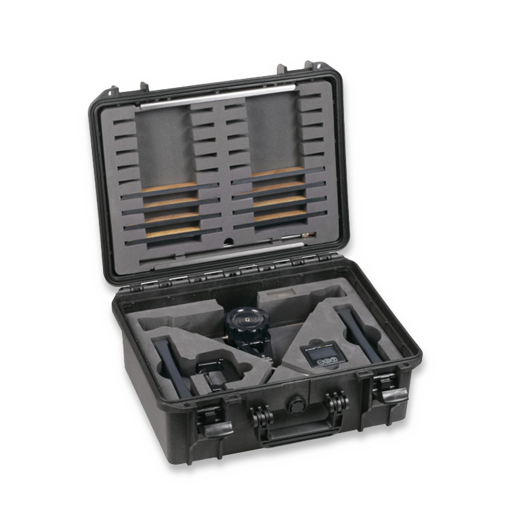

• Durable waterproof case with pressure walve with secure locking
• Milled and wattercutted foam for secure storing and transporting whole kit, including pockets for 9 pairs of sharpening stones
• Digital inclinometer durability Ip65 with backlight display for exact sharpening angle adjusting
• Tool for leading rods change, allen key for bolts

Materials used:

• ENAW 7075 T651 duralumin alloy with hard coloured anodising
• Stainless lead screw
• Stainless leading rods
• Leading rods bushing - bronze
• Leading screw bushing - bronze
• Angle nuts - bronze

Main advantages of KMFS RIVAL MOA21:
• Complete production on CNC machining centers from solid block of material for maximum rigidity and durability. Casis of MOA21 is integral construction of solid piece 7075 T651 ERGAL. Whole mechanism is secured in this chasis for maximum rigiditty, accuracy and durability.
• Patented clamping mechanism world-unique construction- only by turning clamping wheel is automaticaly adjusted: clamp on thickness of the blade, fix this position and by double transmitted system using exponencial craft multiplying secure the knife blade.
• Clamping wheels are milled of solid block ERGAL 7075 T651 for maximum toughtness and accuracy, they are exactly placed on stainless axe.
• Exact angle adjusting by 3 mm steps on stainless leading screw TR10, with patented option of fine adjusting each side independently and with function of automatic zero in referee position.
• Connected both sides angles adjusting system.
• For knife clampig, any angle adjusting is no need of any extra tools.
• Thanks to helix move leading nuts on trapezoidal screw, there is elimination of higher edge on the tip of blade.
